Tuesday, March 2, 2010

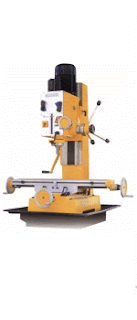

Top Tech DM-45


Top Tech Milling and Drilling Machine - $1395

Sold through http://www.lighttoolsupply.com

Item is located in Maplewood NJ and can be picked up.

Geared Head Mill/Drill Dovetail Column - Swivel Head 90°
Milling, drilling, tapping, boring, reaming.
Capacity, cast iron: 1-9/16", mild steel: 1-1/4".
Massive 3" diameter quill.
Zero setting dials.
Full 5" spindle stroke.
21" swing.
Head tilt 90 degrees right and left.
Forward/reverse switch.
Zinc alloy handle wheels.
Fine downfeed calibrated.

Specifications:
Face mill capacity: 3"
Swing: 21"
Max.distance:
Spindle to table: 18-1/2"
Spindle to taper: R-8
Spindle stroke 5"
Table size: 32" x 9-1/2"
Table travel: 20" x 9"
Quill diameter: 3"
Spindle speeds: (6)75-1600 RPM
T-slot size: 5/8"
Motor: 1 HP, 110/220 1 Ph
Weight: 750 Lbs
